HilapriSol 20APWMSAE01
20A PWM Controller, Solar Panel Charge Controller 12V + Extra SAE Cable | For LiFePO4, AGM, Gel, Flooded Batteries, LCD Display & LED Indicators,USB‑A & Type‑C Dual Ports, Reverse Current Protection
In Stock
Small 20 A PWM controller for 12V systems up to 300 W, with an LCD, LED indicators, 4-stage charging and an extra SAE cable for portable panels. A blocking diode prevents reverse current at night, and it carries FCC, CE and UKCA marks. At 5 oz (140 g) it is among the lightest listed, a fit for simple portable panel setups rather than larger roof arrays.
- Price
- $23.99
- Brand
- HilapriSol
Prices from Amazon as of . Product prices and availability are accurate as of the date and time indicated and are subject to change. Any price and availability information displayed on Amazon at the time of purchase will apply to the purchase of the product. As an Amazon Associate I earn from qualifying purchases.
How it compares
Compared with the other solar charge controllers on this site that list each value:
- Weight is lower than 92% of 25 others: 0.31 lbs (0.14 kg)
- Depth/Height is lower than 95% of 22 others: 1.18 in. (30 mm)
- Rated charge current is lower than 86% of 30 others: 20 A
- Max solar input (12V battery) is lower than 77% of 18 others: 300 W
Specifications
These details are subject to change and may not be current. Please check Amazon or manufacturer web site to confirm before purchase.
- Model
- 20APWMSAE01
Physical Attributes
- Weight
- 0.31 lbs
- Weight
- 0.14 kg
- Length
- 7.08 in.
- Length
- 180 mm
- Width
- 4.13 in.
- Width
- 105 mm
- Depth/Height
- 1.18 in.
- Depth/Height
- 30 mm
Certifications
- Certifications summary
- FCC-SDOC, CE, UKCA
- CE marked
- Yes
Safety
- Overheat protection
- Yes
Physical Attributes
- Display type
- LCD with LED indicators
Core specs
- Controller type
- PWM
- Rated charge current
- 20 A
- Battery system voltages
- 12V
Charging
- Max solar input (12V battery)
- 300 W
- Charging stages
- 4-stage
Safety
- Reverse polarity protection
- Yes
Features
Details from the HilapriSol 20APWMSAE01 Amazon listing:
- Durable 20A PWM controller + 1 Extra SAE Cable：Solar charge controller 12v features a simple and stable circuit for better cost efficiency. Less components mean fewer breakdowns and low standby power waste, supporting reliable energy flow between solar panels and batteries. Increased output current cuts charging time for your 12V off-grid setup. Solar charge controller is compatible with max 300W solar panels with no integrated charge controller. Not suitable for 24V or 36V battery banks
- Ultra-Low Standby Drain & Reverse Current Protection: charge controller 12v uses optimized circuitry draws barely any battery power on standby.Charge controller features a built-in blocking diode inhibits reverse current drain post-sunset to avoid wasted energy and maintain battery capacity overnight
- Comprehensive Safety Protection: The charge controllers for solar panels come with built-in safeguards for overcharging, overvoltage, overload, short circuit, reverse polarity and overheating. Solar controller features intelligent 4-stage charging that automatically adjusts modes according to battery conditions to avoid damage, prolong battery life and deliver reliable, safe performance for your full solar setup

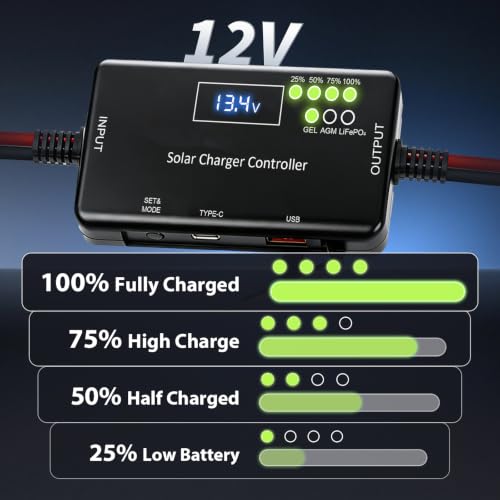

- LCD Real-Time Monitoring: Solar charge controller 12v is equipped with a high-definition LCD display and LED indicator lights. Solar panel controller lets you check solar voltage, battery voltage and charging progress in real time. Simply press the button to view real-time current, and the screen automatically switches to power-saving display mode
- Authoritative Certification & Professional After-Sales Support: Solar panel controller is certifiead to FCC-SDOC, CE, and UKCA standards for verified safety, stable performance, and full international compliance. Our customer support team assists with all your installation, setup, and usage concerns, delivering reliable and worry-free after-sales service
Similar products from other brands
Chosen for their similar specifications and price.
 This productHilapriSol 20APWMSAE01 |
 BougeRV ISE136 |
 EtnalSolar 10A PWM Solar Charge Controller with Auto Parameter LCD Display | 12V/24V Solar Panel Regulator with Dual USB Port Adjustable Timer Setting for Lead-Acid & Lithium Batteries Garden Light Shed |
 ECO-WORTHY L03PWM30A2.1BW-1 |
|
|---|---|---|---|---|
| Price | $23.99 | $29.99 | $10.99 | $42.99 |
| Model | 20APWMSAE01 | ISE136 | – | L03PWM30A2.1BW-1 |
| USB-A ports count | – | – | 2 | 2 |
| Weight (lbs) | 0.31 | 0.80 | 0.31 | 0.53 |
| Weight (kg) | 0.14 | 0.36 | 0.14 | 0.24 |
| Length (in.) | 7.08 | 5.92 | 5.31 | 5.91 |
| Length (mm) | 180 | 150 | 135 | 150 |
| Width (in.) | 4.13 | 3.95 | 2.76 | 3.70 |
| Width (mm) | 105 | 100 | 70 | 94 |
| Depth/Height (in.) | 1.18 | 1.92 | 1.18 | 1.30 |
| Depth/Height (mm) | 30 | 49 | 30 | 33 |
| Warranty | – | 18 Months | – | – |
| Certifications summary | FCC-SDOC, CE, UKCA | – | – | – |
| IP rating | – | IP32 | – | – |
| Operating temp min (℉) | – | -31 | – | -4 |
| Operating temp max (℉) | – | 113 | – | 140 |
| Operating temp min (℃) | – | -35 | – | -20 |
| Operating temp max (℃) | – | 45 | – | 60 |
| CE marked | Yes | – | – | – |
| Overheat protection | Yes | – | Yes | Yes |
| Low-voltage protection | – | – | – | Yes |
| Display type | LCD with LED indicators | Backlit color LCD | Backlit LCD | LCD |
| Controller type | PWM | PWM | PWM | PWM |
| Rated charge current (A) | 20 | 30 | 10 | 30 |
| Battery system voltages | 12V | 12/24V | 12/24V | 12/24V |
| Auto voltage detection | – | Yes | Yes | Yes |
| Max PV input voltage (Voc) (V) | – | 55 | – | 50 |
| Max solar input (12V battery) (W) | 300 | 450 | 120 | – |
| Max solar input (24V battery) (W) | – | 900 | 240 | – |
| Battery types supported | – | SLD, FLD, GEL, AGM, SLA, LiFePO4, ternary lithium, LTO | Open, AGM, GEL lead-acid; Li-ion; LiFePO4 | LFP, FLD, SLD, GEL, custom (CUS) |
| LiFePO4 charging profile | – | Yes | Yes | Yes |
| User-defined charge voltages | – | – | – | Yes |
| Lithium reactivation | – | Yes | – | – |
| Charging stages | 4-stage | – | Bulk, absorption, float | Bulk, absorption, float |
| Load control modes | – | – | Adjustable timer | – |
| Grounding type | – | Negative ground | – | – |
| Reverse polarity protection | Yes | – | Yes | Yes |
Specifications last updated Oct 20, 2026.
