Victron Energy SCC115070211
Victron Energy SmartSolar MPPT Tr Charge Controller 150V, 70A, 12/24/36/48V | Bluetooth Solar Charge Controllers for Solar Panels, Certified to UL1741
Only 1 left in stock - order soon.
A 70 A SmartSolar MPPT with Tr screw terminals for wire up to 2 AWG, built-in Bluetooth, VE.Direct and support for parallel operation with other units. It accepts 150 V of PV input and up to 1000 W at 12V or 4000 W at 48V. Carrying UL 1741, CSA and IEC 62109-1 certifications, it is one of the higher-current controllers listed at 6.6 lbs (3.0 kg), for large RV and bus solar arrays.
- Brand
- Victron Energy
Ranking within Category
Comparing this product to others on Nomad Gear Finder (in the solar charge controllers category with a value specified):
- This product's Weight is higher than 88% of 25 others: 6.61 lbs (3.00 kg)
- This product's Length is higher than 86% of 22 others: 9.84 in. (250 mm)
- This product's Depth/Height is higher than 90% of 22 others: 7.28 in. (185 mm)
- This product's Max solar input (12V battery) is higher than 77% of 18 others: 1,000 W
- This product's Max terminal wire size is lower than 77% of 9 others: 2 AWG
- This product's Max terminal wire size (mm²) is higher than 71% of 7 others: 35 mm²
Specifications
These details are subject to change and may not be current. Please check Amazon or manufacturer web site to confirm before purchase.
Physical Attributes
- Weight
- 6.61 lbs
- Weight
- 3.00 kg
- Length
- 9.84 in.
- Length
- 250 mm
- Width
- 3.74 in.
- Width
- 95 mm
- Depth/Height
- 7.28 in.
- Depth/Height
- 185 mm
Certifications
- Certifications summary
- EN/IEC 62109-1, UL 1741, CSA C22.2
Physical Attributes
- IP rating
- IP43
Operating Temp Range
- Operating temp min
- -22 ℉
- Operating temp max
- 140 ℉
- Operating temp min
- -30 ℃
- Operating temp max
- 60 ℃
Internals
- App connectivity
- Bluetooth
Safety
- Overheat protection
- Yes
Core specs
- Controller type
- MPPT
- Rated charge current
- 70 A
- Battery system voltages
- 12/24/36/48V
- Auto voltage detection
- Yes
Charging
- Max PV input voltage (Voc)
- 150 V
- Max solar input (12V battery)
- 1,000 W
- Max solar input (24V battery)
- 2,000 W
- Max solar input (48V battery)
- 4,000 W
- Peak conversion efficiency
- 98.0 %
- User-defined charge voltages
- Yes
Internals
- Built-in Bluetooth
- Yes
- Communication port
- VE.Direct
- Parallel operation
- Yes
Physical Attributes
- Max terminal wire size
- 2 AWG
- Max terminal wire size (mm²)
- 35 mm²
Safety
- Reverse polarity protection
- Yes
Certifications
- UL 1741 listed
- Yes
- CSA C22.2 No. 107.1
- Yes
- IEC 62109-1 certified
- Yes
Features
Details from the Victron Energy SCC115070211 Amazon listing:
- SMART SOLAR CHARGE CONTROLLER: Solar charge the smart way with the Victron Energy SmartSolar MPPT charge controller, to ensure that every ray of available sunlight is converted into usable energy, while optimizing battery longevity.
- MAXIMIZE POWER OUTPUT: With lightning-fast optimum power point tracking and intelligent charge algorithms the Victron MPPT solar charge controller makes sure you always get the maximum possible power output, even when your solar panels are partially covered in shade.

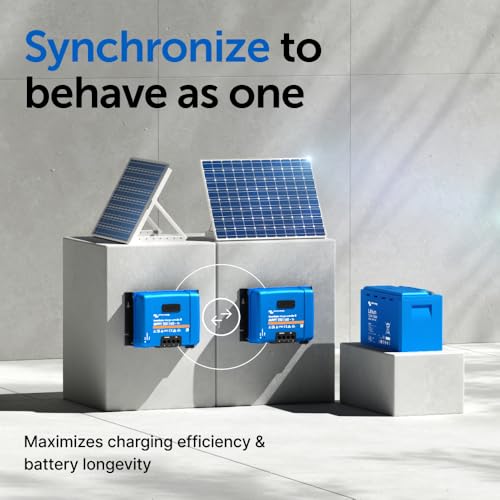

- SYNCHRONIZED CHARGING: Multiple SmartSolar MPPT charge controllers can synchronize to behave as one, simultaneously switching through different charge stages to ensure battery longevity and system wide energy optimization.
- CONNECTIVITY: The VictronConnect app lets you connect with your system to gain insight into real-time data and 30-day performance history. Easily configure devices with battery presets, change settings, update firmware and set alarms to tailor your system to your every need.
- INTELLIGENT LOAD OUTPUT: Power devices directly and securely from your solar charger. Configure the voltage at which a load should disconnect and rely on the MPPT charge controller to automatically disconnect the loads if the battery voltage drops too low.
Similar products from other brands
Chosen for their similar specs and price:
 This productVictron Energy SCC115070211 |
 EARNMee 60A MPPT Solar Charge Controller,12V 24V 36V 48V(Manual) PV 150V | Ideal for RV, Large Solar Systems, Compatible with Mono/Poly Panels & Lead-Acid/Lithium Batteries,98% Conversion Efficiency |
 BougeRV ISE218 |
 120A MPPT Solar Charge Controlle 12V/24V/36V/48V/60V/72V/84V/96V Auto,Up to11520W Max Input 230V, RS485, LCD Smart Cooling Solar Panel Charge Controller for Off-Grid Systems AGM, Gel, Lithium ect |
|
|---|---|---|---|---|
| Price | – | $77.00 | $139.99 | $149.99 |
| Model | SCC115070211 | – | ISE218 | – |
| Weight (lbs) | 6.61 | 3.50 | 3.95 | 8.69 |
| Weight (kg) | 3.00 | 1.59 | 1.79 | 3.94 |
| Length (in.) | 9.84 | 8.27 | 8.94 | 12.40 |
| Length (mm) | 250 | 210 | 227 | 315 |
| Width (in.) | 3.74 | 3.54 | 6.26 | 3.60 |
| Width (mm) | 95 | 90 | 159 | 91 |
| Depth/Height (in.) | 7.28 | 6.50 | 2.95 | 8.40 |
| Depth/Height (mm) | 185 | 165 | 75 | 213 |
| Warranty | – | 12 Months | 18 Months | – |
| Certifications summary | EN/IEC 62109-1, UL 1741, CSA C22.2 | – | CE, RoHS | – |
| IP rating | IP43 | IP21 | IP34 | – |
| Operating temp min (℉) | -22 | – | -31 | – |
| Operating temp max (℉) | 140 | – | 149 | – |
| Operating temp min (℃) | -30 | – | -35 | – |
| Operating temp max (℃) | 60 | – | 65 | – |
| App connectivity | Bluetooth | – | Bluetooth | – |
| CE marked | – | – | Yes | – |
| Overheat protection | Yes | Yes | Yes | Yes |
| Low-voltage protection | – | Yes | – | – |
| Display type | – | LCD | Backlit LCD | LCD |
| Controller type | MPPT | MPPT | MPPT | MPPT |
| Rated charge current (A) | 70 | 60 | 40 | 120 |
| Battery system voltages | 12/24/36/48V | 12/24/36/48V | 12/24V | 12/24/36/48/60/72/84/96V |
| Auto voltage detection | Yes | No | Yes | Yes |
| Max PV input voltage (Voc) (V) | 150 | 150 | 100 | 230 |
| Max solar input (12V battery) (W) | 1,000 | – | 600 | 1,440 |
| Max solar input (24V battery) (W) | 2,000 | – | 1,200 | 2,880 |
| Max solar input (48V battery) (W) | 4,000 | – | – | 5,760 |
| Peak conversion efficiency (%) | 98.0 | 98.0 | 99.0 | – |
| MPPT tracking efficiency (%) | – | – | 99.5 | – |
| Self-consumption (mA) | – | – | 10.0 | – |
| Battery types supported | – | Lead-acid, Gel, Lithium | LiFePO4, SLD, GEL, FLD, AGM, User Defined | LiFePO4, lithium-ion, lead-acid, GEL |
| LiFePO4 charging profile | – | – | Yes | – |
| User-defined charge voltages | Yes | – | Yes | Yes |
| Lithium reactivation | – | – | Yes | – |
| Low-temp charge cut-off | – | – | Yes | – |
| Battery temp sensor included | – | – | Yes | – |
| Load output current (A) | – | – | 20 | – |
| Built-in Bluetooth | Yes | – | Yes | – |
| Communication port | VE.Direct | – | – | RS485 (RJ12) |
| Parallel operation | Yes | – | – | – |
| Cooling | – | Fan (temperature-controlled air cooling) | – | – |
| Grounding type | – | – | Common negative | – |
| Max terminal wire size (AWG) | 2 | – | 8 | – |
| Max terminal wire size (mm²) (mm²) | 35 | – | – | – |
| Reverse polarity protection | Yes | – | Yes | – |
| UL 1741 listed | Yes | – | – | – |
| CSA C22.2 No. 107.1 | Yes | – | – | – |
| IEC 62109-1 certified | Yes | – | – | – |
| RoHS compliant | – | – | Yes | – |
Data sources
Data for this product compiled from these sources:
- https://www.victronenergy.com/solar-charge-controllers/smartsolar-250-85-250-100
- https://www.victronenergy.com/media/pg/Manual_SmartSolar_MPPT_150-60_up_to_250-70/en/technical-specifications.html
- https://www.victronenergy.com/upload/documents/Datasheet-SmartSolar-charge-controller-MPPT-150-60-&-150-70-EN.pdf
Specifications last updated Oct 20, 2026.
